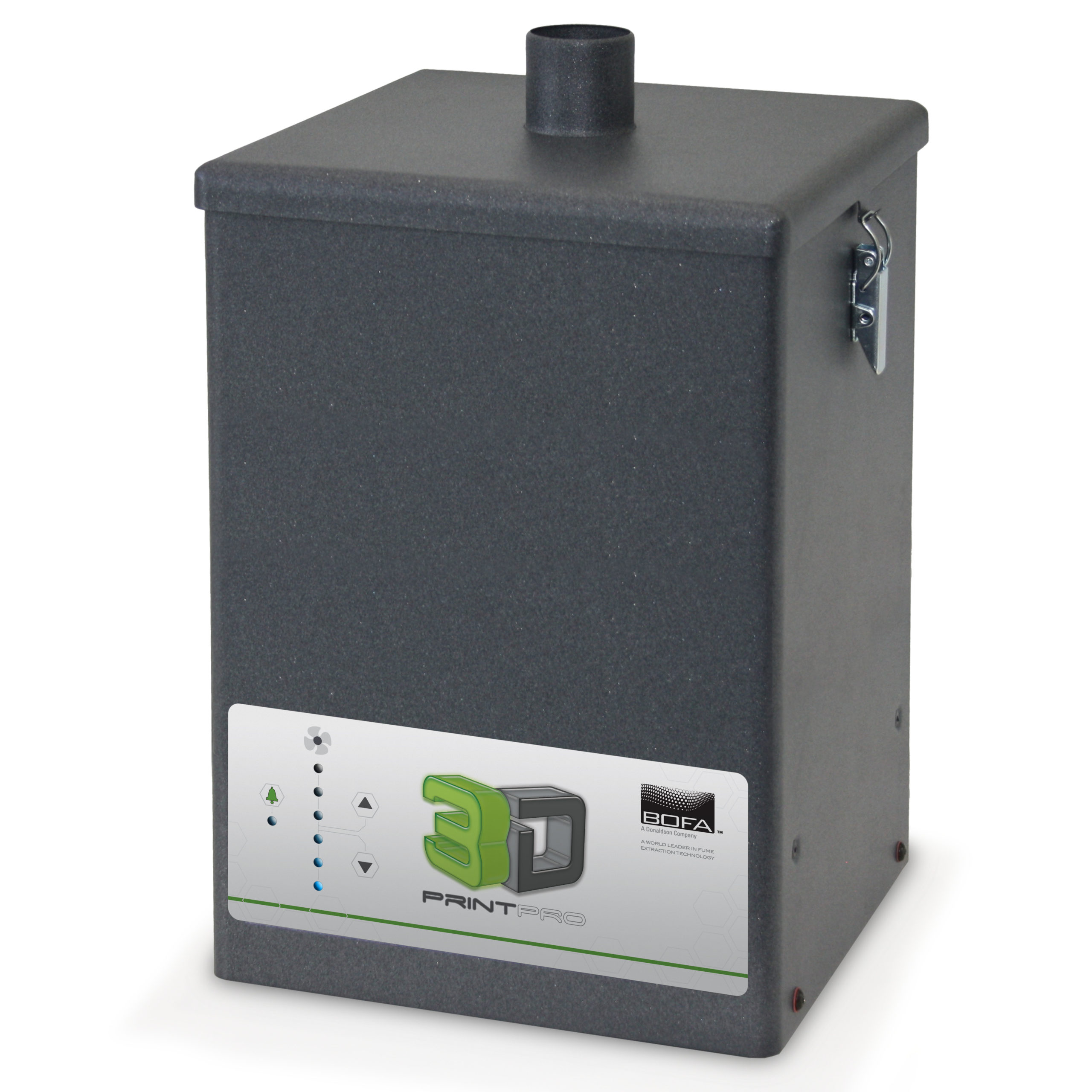

BOFA 3D PRINTPRO 3 EXTRACTION SYSTEM FOR 3D PRINTERS

BOFA’s 3D PrintPRO 3 Extraction System is a low-cost unit, designed to extract fumes & particulates generated by tabletop enclosed/partially enclosed 3D printer.

The BOFA 3D PrintPRO 3 is the next inline of BOFA’s best “in-class” 3D Printer Extraction Units. The 3D PrintPRO 3 is a cost effective, fume and dust extraction system designed to remove the fumes and particulates generated by an open frame 3D printer – without causing the filament deposition area to be cooled . The BOFA 3D PrintPRO 3 can use externally mounted plenum manifolds or an extract arm, both of which capture and remove the fumes generated during the printing process. The extracted air is then drawn through the filters, which remove the fumes and dust particulates from the extracted air and then pass it back into the workplace.

The 3D PrintPRO 3 benefits from a low noise level and minimal power consumption with an integrated speed control. The motor automatically senses the required voltage for each country, from 90 volts to 257 volts, making it a global product with minimal fuss. Extractor is ideal for applications including Medium Volume 3D Printing, Open Framed 3D Printers and for use within Schools or for prototyping.

Don’t have a way to connect your 3D printer to our extractors? Connectors for your 3D printer can be printed from the files linked here or as part of our 3D Printing Service.

Unit with Installation Kit (P/N: 32361001-1597) Contains:
– 3D PrintPRO 3 Extractor Unit
– BOFA Pre-Filter (A1030102 ) and Combined HEPA/Gas Filter (A1030099 )
– Installation Kit (A1020554): 1M 50mm Flexi Hose (A1080007) x 2, & 50mm Connection Cuffs (A1020057) x 2

Other Options & Replacement Parts::
– If you require the optional feature of a Stop/Start Interface please contact our sales Office to arrange a quotation.

Key Product Features & Benefits:

– Supplied as Unit only or with Installation kit

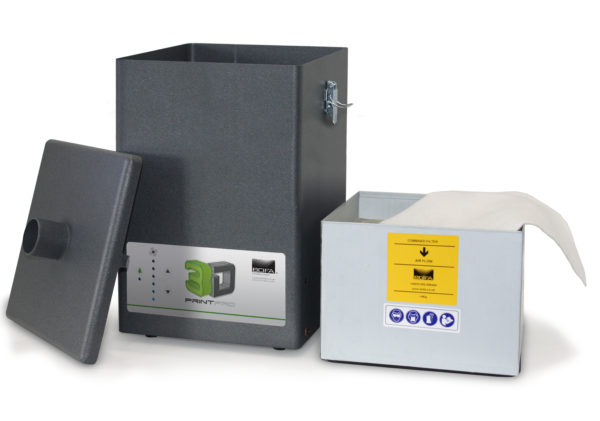

– 3 level filtration – Pre, HEPA, and chemical filters
– Uses both a BOFA Pre-Filter (A1030102 ) & Combined HEPA/Gas Filter (A1030099 )
– Multi-Stage Filters
– Pre-Filter, HEPA Filter, and Carbon (gas) Filter
– Compact and Self Contained
– Filter monitor gage
– Replaceable filters
– 90v – 257v Automatic Variable Voltage
– Plug and Play
– Powder Coated Finish
