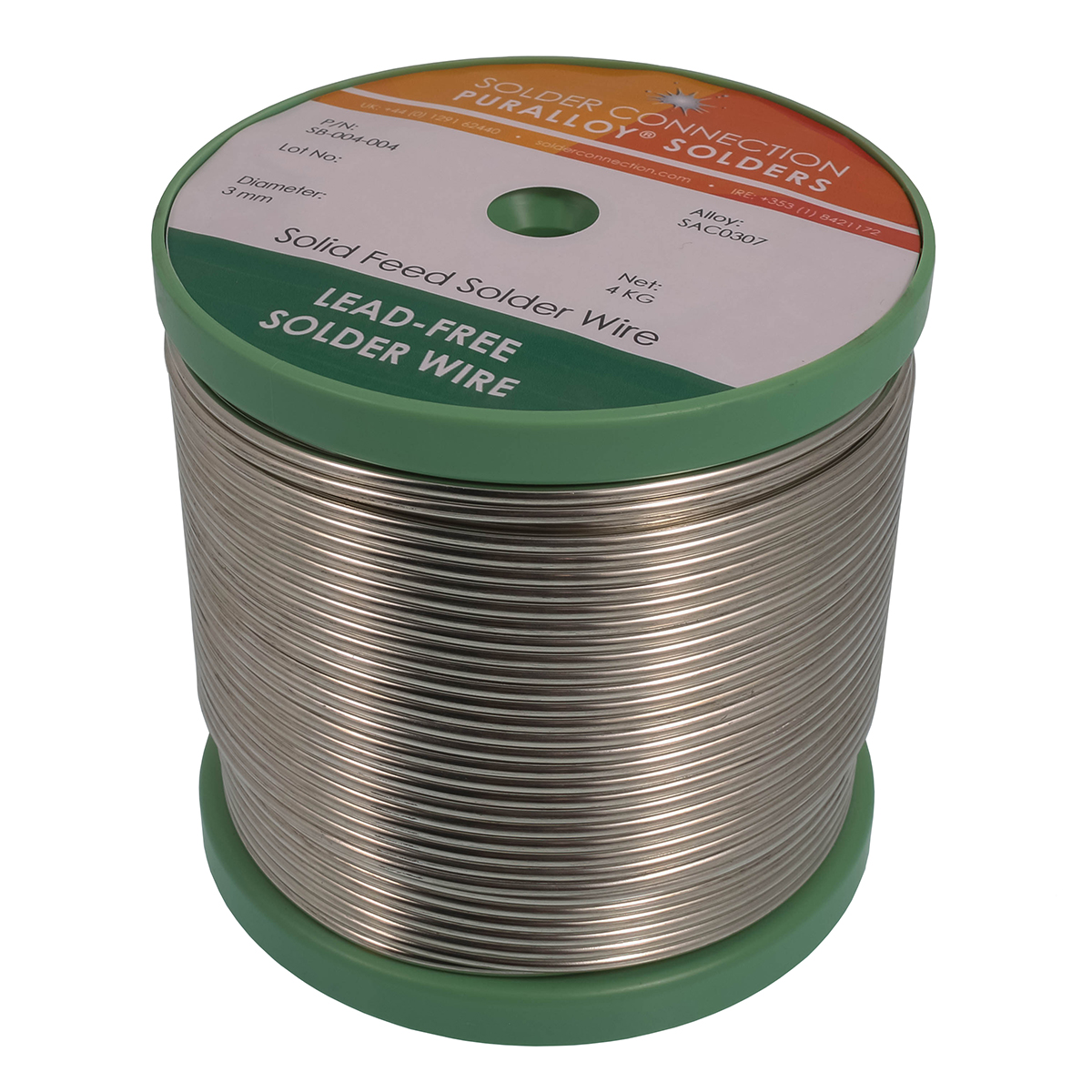

TSC Puralloy® SAC0307 is a Lead-free Solid Feed Wire is a large diameter feed wire, supplied on a 4KG reel, comprised of tin, silver & copper. TSC Puralloy® SAC 0307 alloys have been proven to perform well in wave, selective and hand soldering applications. SAC 0307 solder alloy is manufactured using a proprietary process which greatly reduces any dross inclusions and provides a highly pure, free flowing alloy which in turn reduces the risk of bridging and solder skips during wave and selective soldering.
Solder Connection Puralloy® incorporates a range of larger diameter feed wires which have been designed with selective soldering in mind. This solder wire is manufactured to high tolerances and wound onto 4 kg reels at a constant tension to ensure a smooth take off through the machine feed mechanism into the solder pot.
This low cost, lead-free silver bearing alloy has a wetting performance inline to other common lead-free alloys in use today such as SAC305 alloy. As companies look to reduce expenses and with the fluctuating metal market, alternative lead-free alloys to SAC305, are being manufactured. TSC Puralloy® SAC 0307 incorporates a much lower silver content, proving to be more cost-efficient whist offering mechanical properties similar to SAC305, including excellent mechanical reliability, low thermal fatigue, excellent hole fill and comparable drainage around the solder joint, together with low dross formation on top of the solder baths.
Key Features & Benefits:
– Melt Point – 217-227°C
– Low-Cost Sn-Ag-Cu Alloy
– Excellent Solder Joint Reliability
– Fast Wetting Comparable to SAC305
– Excellent Fatigue Resistance
– Complies with IPC J-STD-006
– Compatible with all Flux Types- Available in a range of formats including Bar, Chunks, Pellets, and Feed Wire
Technical Properties:
– Density 7.33 g/cm3
– Tensile Strength 300 kgf/cm2
– Tensile Elongation 22%
– Brinell Hardness 14HB
