PCB Production Tooling
Global Datum create bespoke design & manufacturing solutions for all your Production Tooling requirements.
PCB Production Tooling
Global Datum’s design & engineering team has over 25 years design experience within the electronic assembly sector. Utilising your PCB digital data we can produce a range of quality bespoke assembly tooling to cover your process requirements.

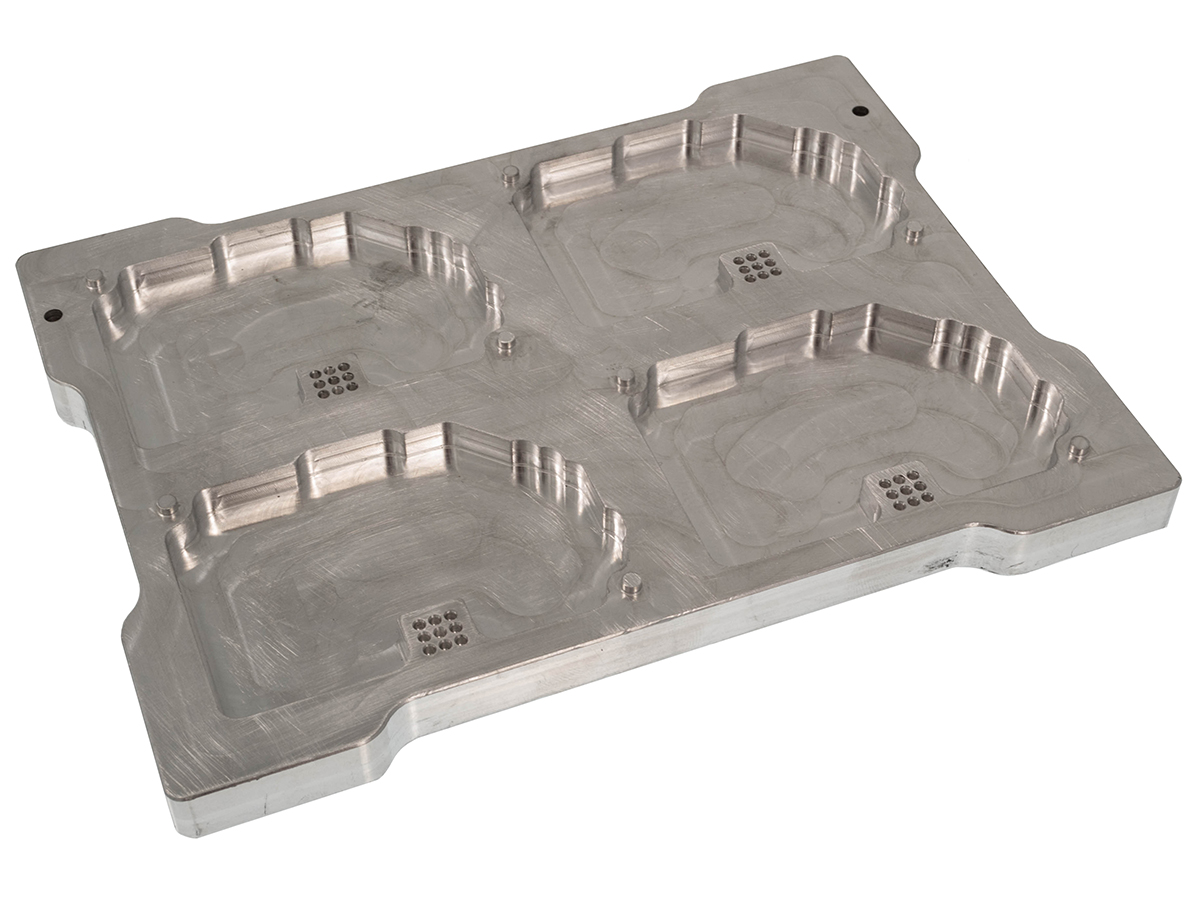

From print support plates for DEK and MPM printers, reflow carriers, wave solder pallets, robotic pick up fixtures and inspection overlays for inexpensive visual inspection simply discuss with us your specific need.
Quality approved solutions generally delivered within 5 working days – can be reduced if required sooner. Assistance available from design team throughout, to ensure tooling efficiency.
What Information is required?
- Gerber RS274x (Legacy Gerber Files will take longer to process).
- Top & Bottom – Silk, Paste, Mask
- Profile
- Drill Files
- PCB Thickness
- Pictures/Assembly Drawings (Beneficial if available)
- Process Order – For DEK Plates & Reflow Carriers (Advises which side is recessed).
Files can be emailed in a Zip File or ODB++.
Note: We do not need inner, ground or top and bottom copper layers.
